U-F3550
UVING
8479899990
SPECIFICATION

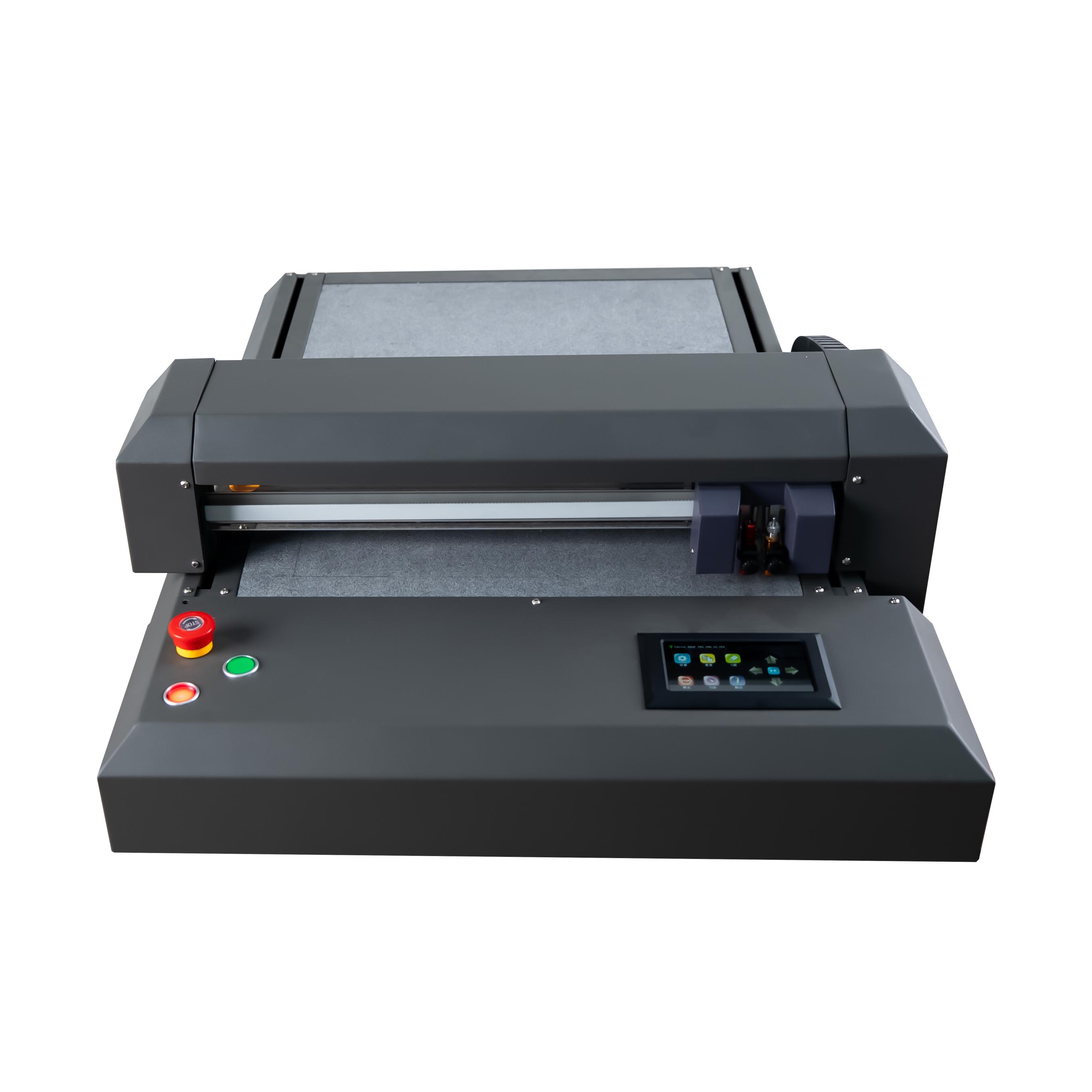

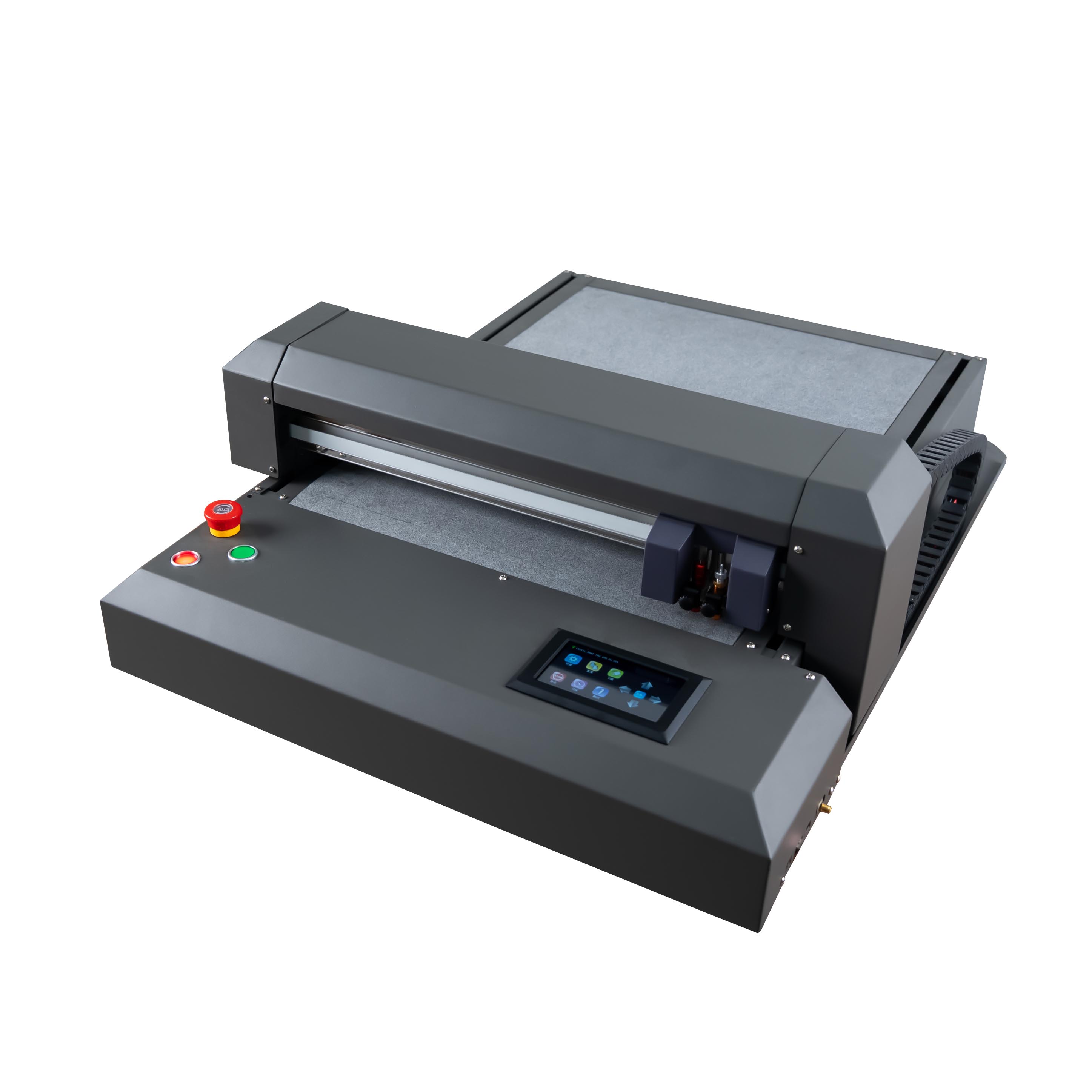

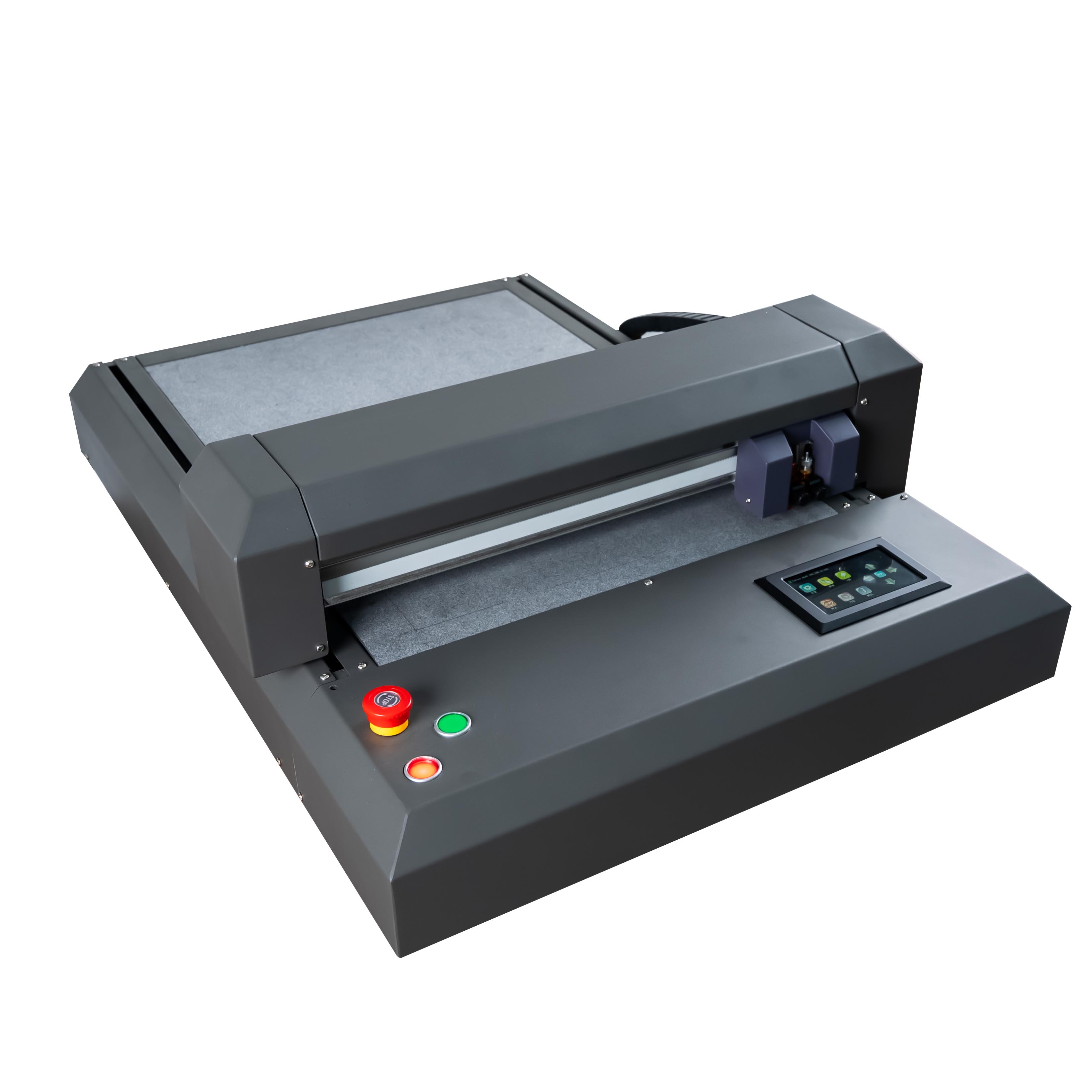

Model | F3550 |
Max.Cutting Speed | 1200mm/s |
Max.Feeding Width | 370mm |
Cutting Area | 500*350mm |
Cutting Pressure | 800g |
Cutting Thickness | ≤1.2mm |
Blade | Dual Blades(Cutting&Creasing) |
Cutting Material | PET, PVC, cardboard, sticker, film, fiber Composite material, fabric, PU, plastic board, etc |
Scan Mark Mode | Camera scan position system |
Driver | Servo motor |
Cutting Precision | ±0.01mm |
Repeatable Precision | ±0.01mm |
Interface | USB/U-Disc Port/WIFI/Ethernet Port |
Compatible Software | Signmaster,AutoCAD,Coreldraw etc |

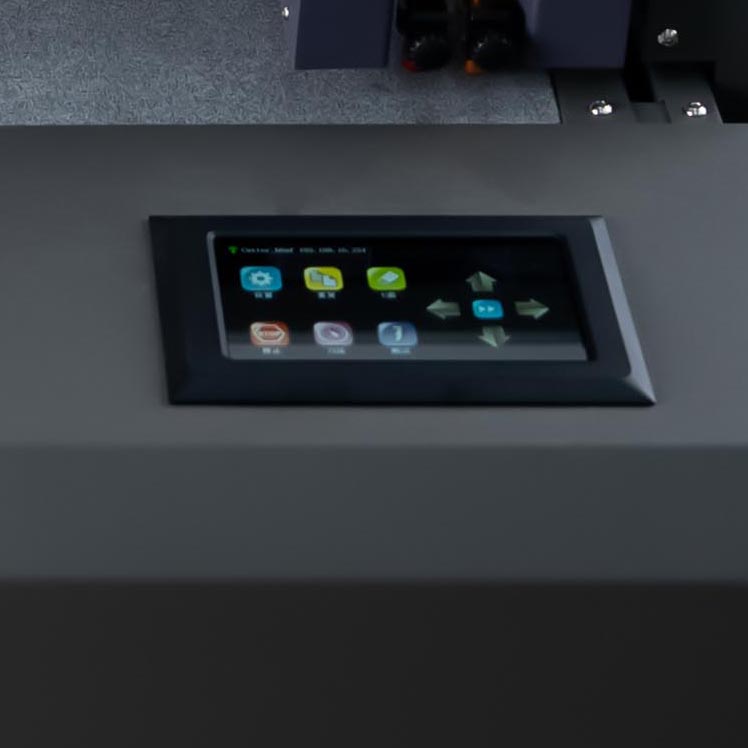

Panel | 4.3" Touch Screen |
Machine Size | The main unit:94*69*29mm Pump：59*41*38cm |
Voltage | DC220V±10%，50HZ |
Packing Size | 145*78*48cm |
Gross Weight | 70kg |
PACKING INFO
Gross weight：211kg
Packing size：145*78*48cm
SPECIFICATION
Model | F3550 |
Max.Cutting Speed | 1200mm/s |
Max.Feeding Width | 370mm |
Cutting Area | 500*350mm |
Cutting Pressure | 800g |
Cutting Thickness | ≤1.2mm |
Blade | Dual Blades(Cutting&Creasing) |
Cutting Material | PET, PVC, cardboard, sticker, film, fiber Composite material, fabric, PU, plastic board, etc |
Scan Mark Mode | Camera scan position system |
Driver | Servo motor |
Cutting Precision | ±0.01mm |
Repeatable Precision | ±0.01mm |
Interface | USB/U-Disc Port/WIFI/Ethernet Port |
Compatible Software | Signmaster,AutoCAD,Coreldraw etc |
Panel | 4.3" Touch Screen |
Machine Size | The main unit:94*69*29mm Pump：59*41*38cm |
Voltage | DC220V±10%，50HZ |
Packing Size | 145*78*48cm |
Gross Weight | 70kg |
PACKING INFO
Gross weight：211kg
Packing size：145*78*48cm
