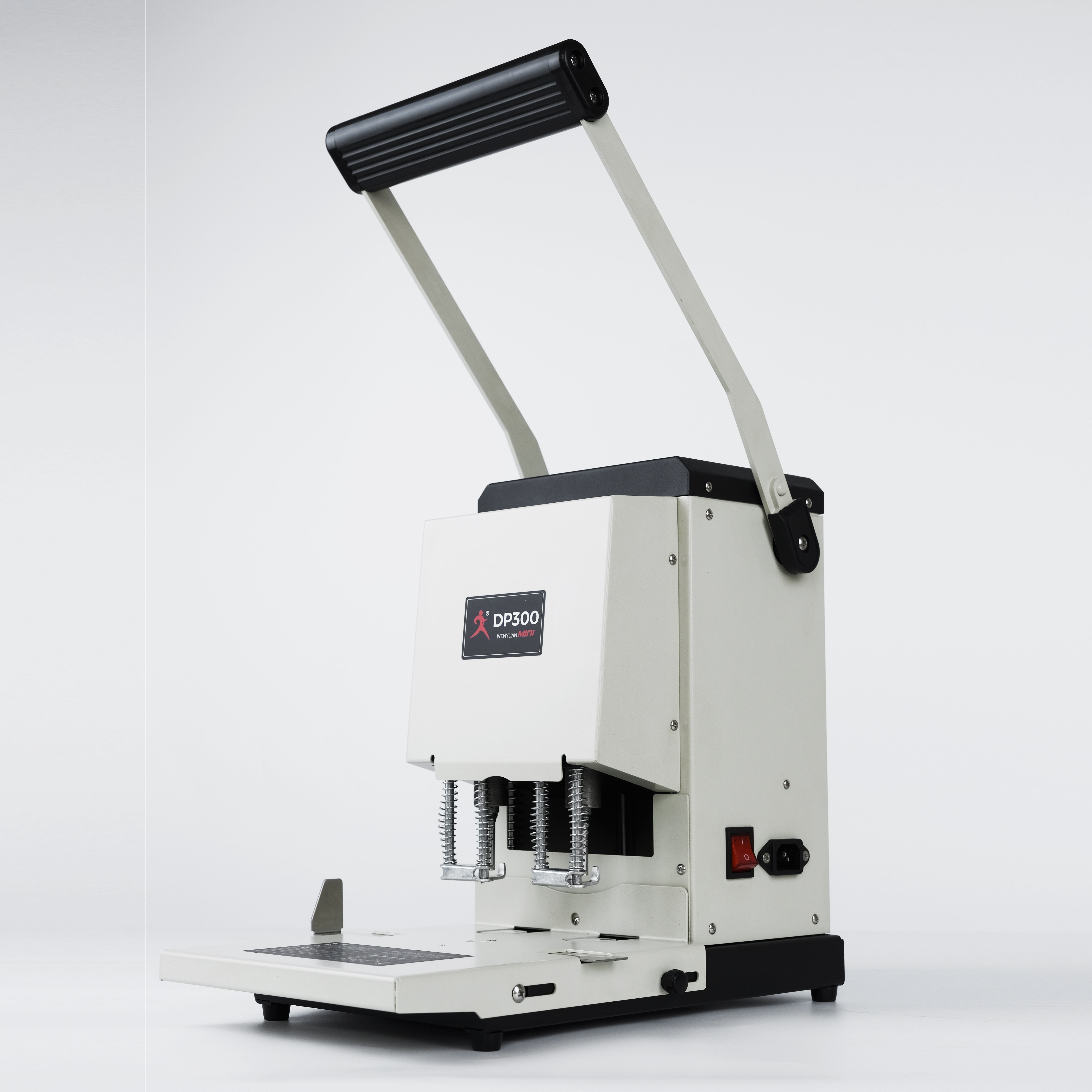

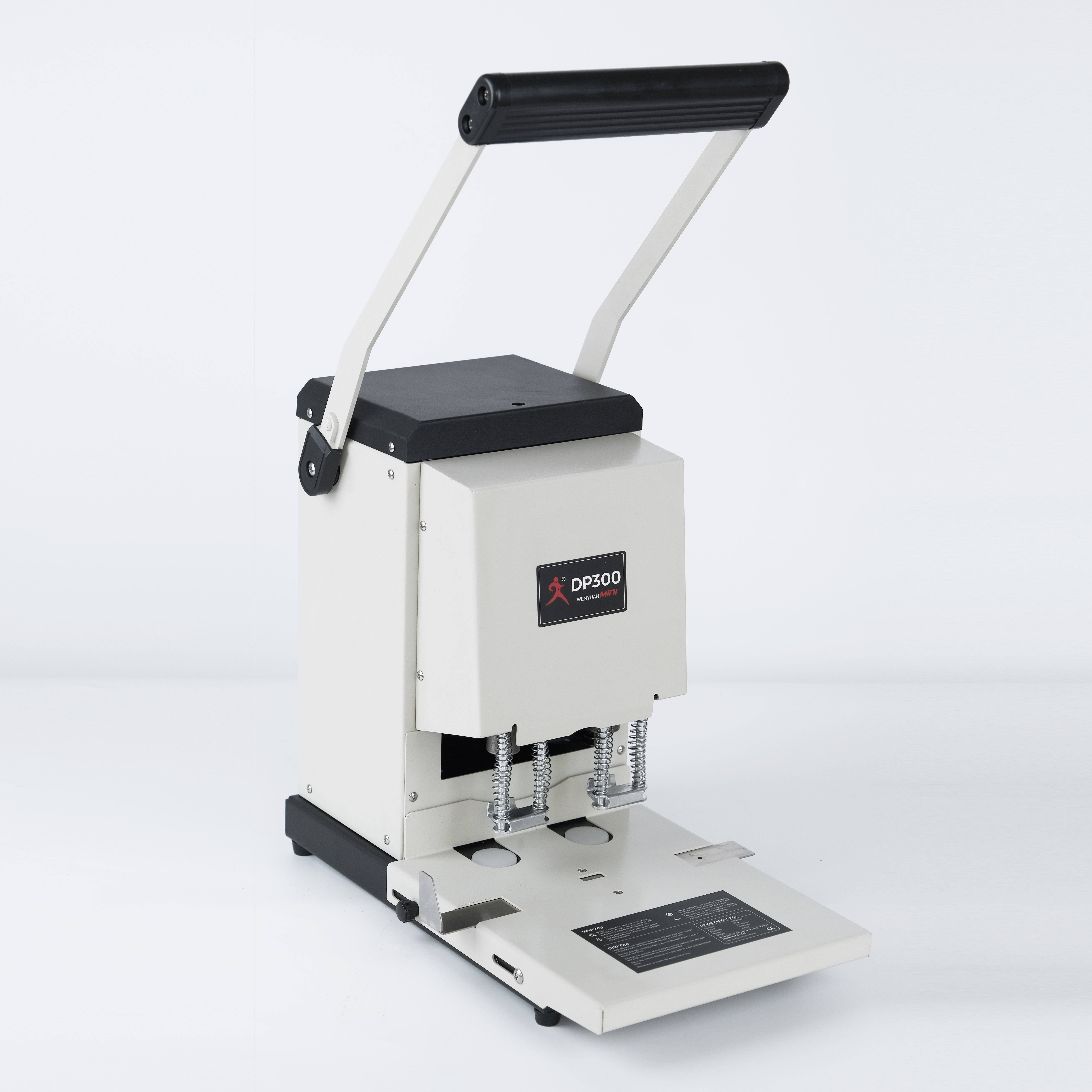

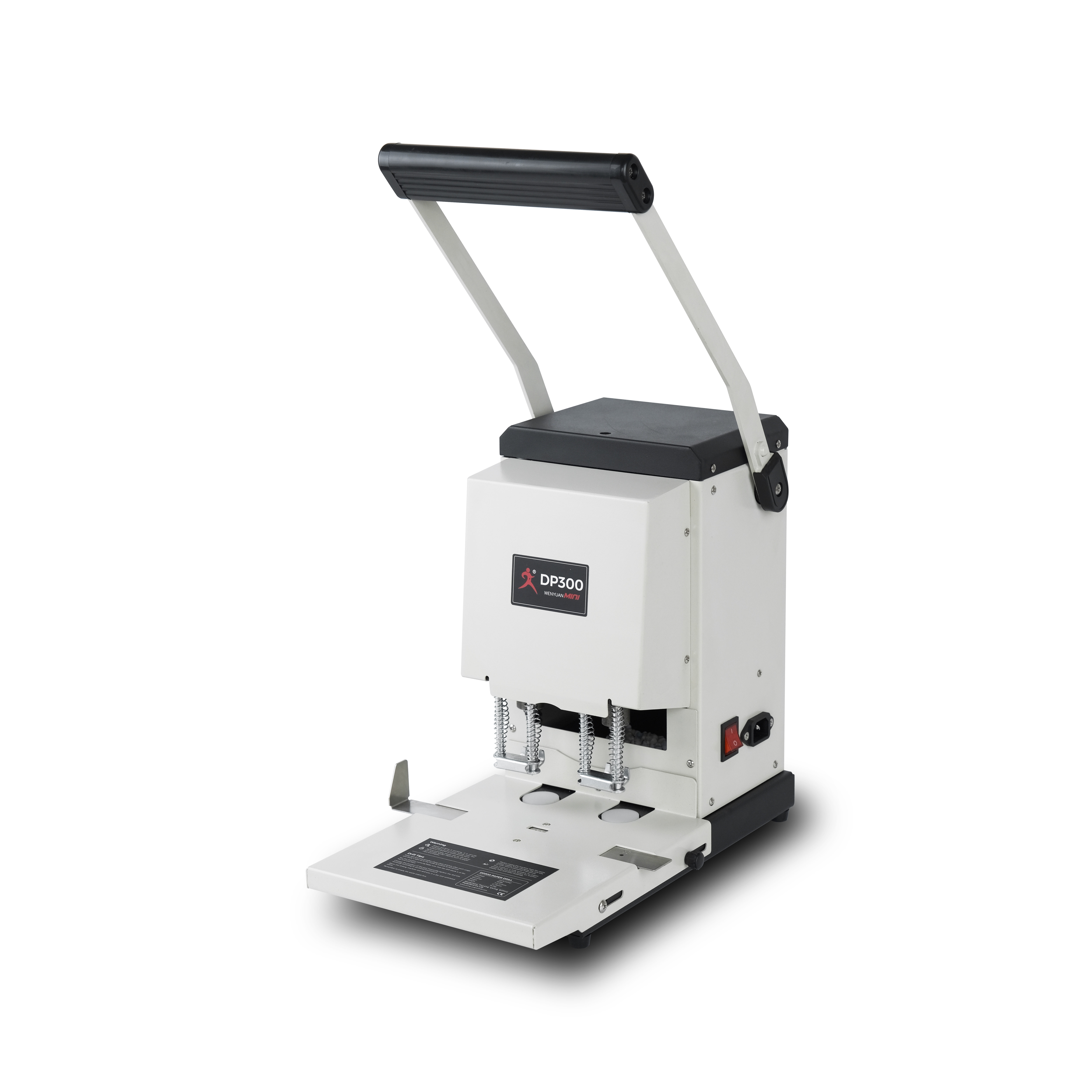

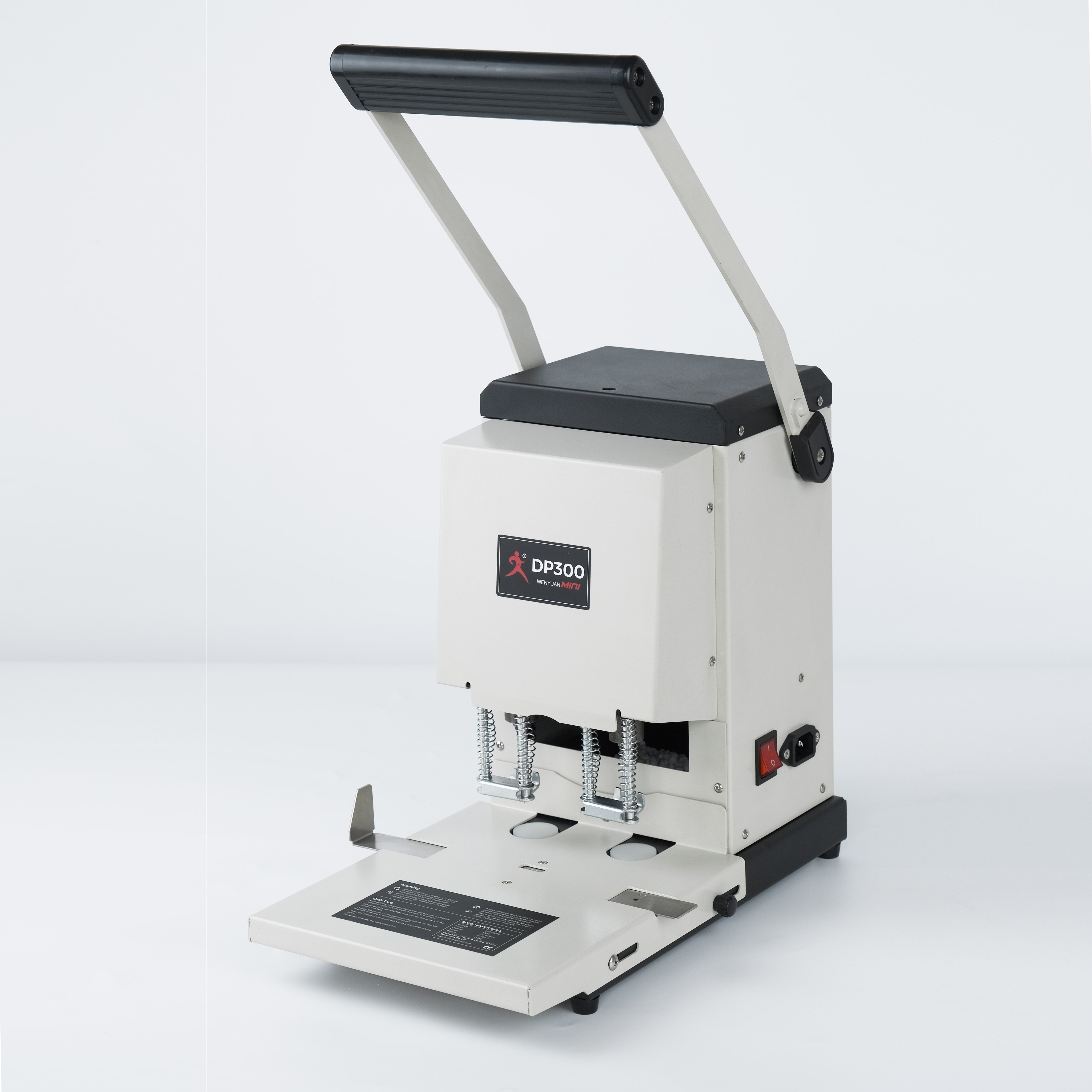

DP300 Electric 2-Hole Paper Puncher

Designed to effortlessly penetrate through 300 pages of paper and quickly complete hole punching for B5-A3 sized documents. This professional-grade tool is perfect for businesses, schools, and offices that require precise and efficient hole punching capabilities. With its durable construction and easy-to-use design, this paper drill is sure to streamline your document organization process.
Hole Distance:
80mm
70mm
Availability:
Quantity:
Inquire Add to Basket

  • U-DP300

  • WENYUAN

  • 8472902100

SPECIFICATION

  • Drill head(spindle) quantity：2

  • Max drill depth：30mm

  • Hole diameter：3.0-8.0mm

  • Hole Distance：80mm fixed(70mm optional)

  • Back gauge margin range：5-32mm

  • Drill mode：Electric+manual

  • Work plate size：208*238mm

  • Machine dimension：25*38.5x*34cm

  • Voltage：220V(110V)±10%，50HZ(60HZ)

  • Power：140W

  • Machine weight：15.5kg

直柄示意图

  • D1(Hole Diameter)：3.0/3.5/4.0/5.0/6.0/7.0/8.0mm

  • D2(Shank Diameter)：11mm

  • L1(Total Length)：65mm

  • L2(Drill Depth)：30mm

DRILLING TIPS

  • Keep drill bits and spindles clean,clean drill bits after each usage and apply a light oil to the inside & outside to avoid rust.

  • Set the drill bits correctly.Make sure that the drill shank is at the top end and fixed.

  • Change the position of the pad frequently,replace the drill bits and pads according to workload requirement.

  • Store the drilling machine and drill bits in a dry and ventilated place.

  • Remember to empty the waste-paper box.
