| Model: | |
|---|---|
| Quantity: | |

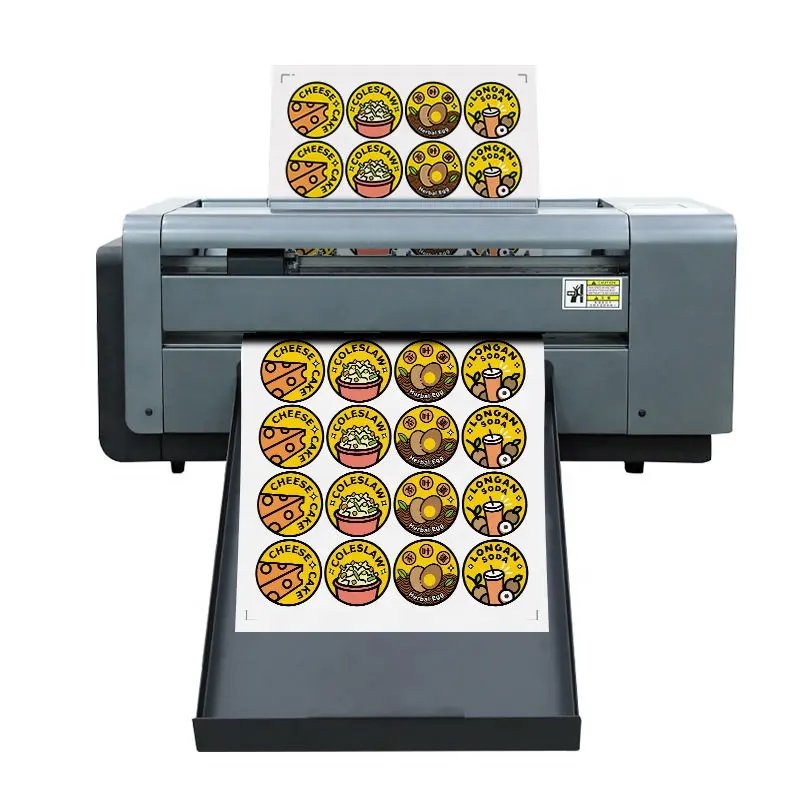

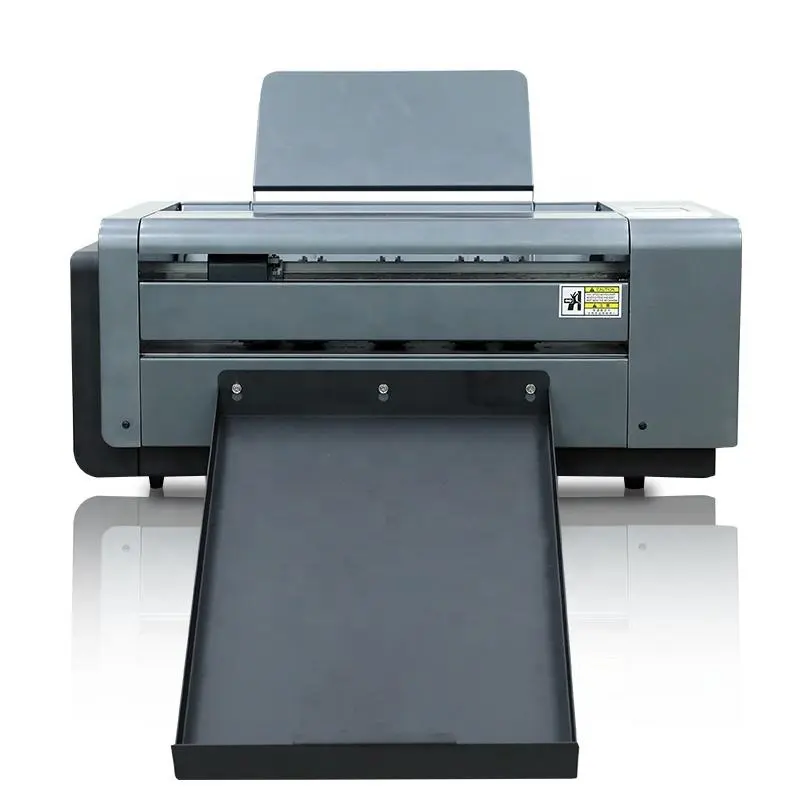

U-A3MAX4
UVING
8479899990
SPECIFICATION
Model | A3MAX4-WDD | A3MAX4-WD |
Max.Cutting Speed | 1600mm/s | |
Max.Feeding Width | 370mm | 370mm |
Max. Cutting Width | 350mm | 350mm |
Cutting Pressure | 2000g | |
Feeding Tray Capacity | 100 sheets | |

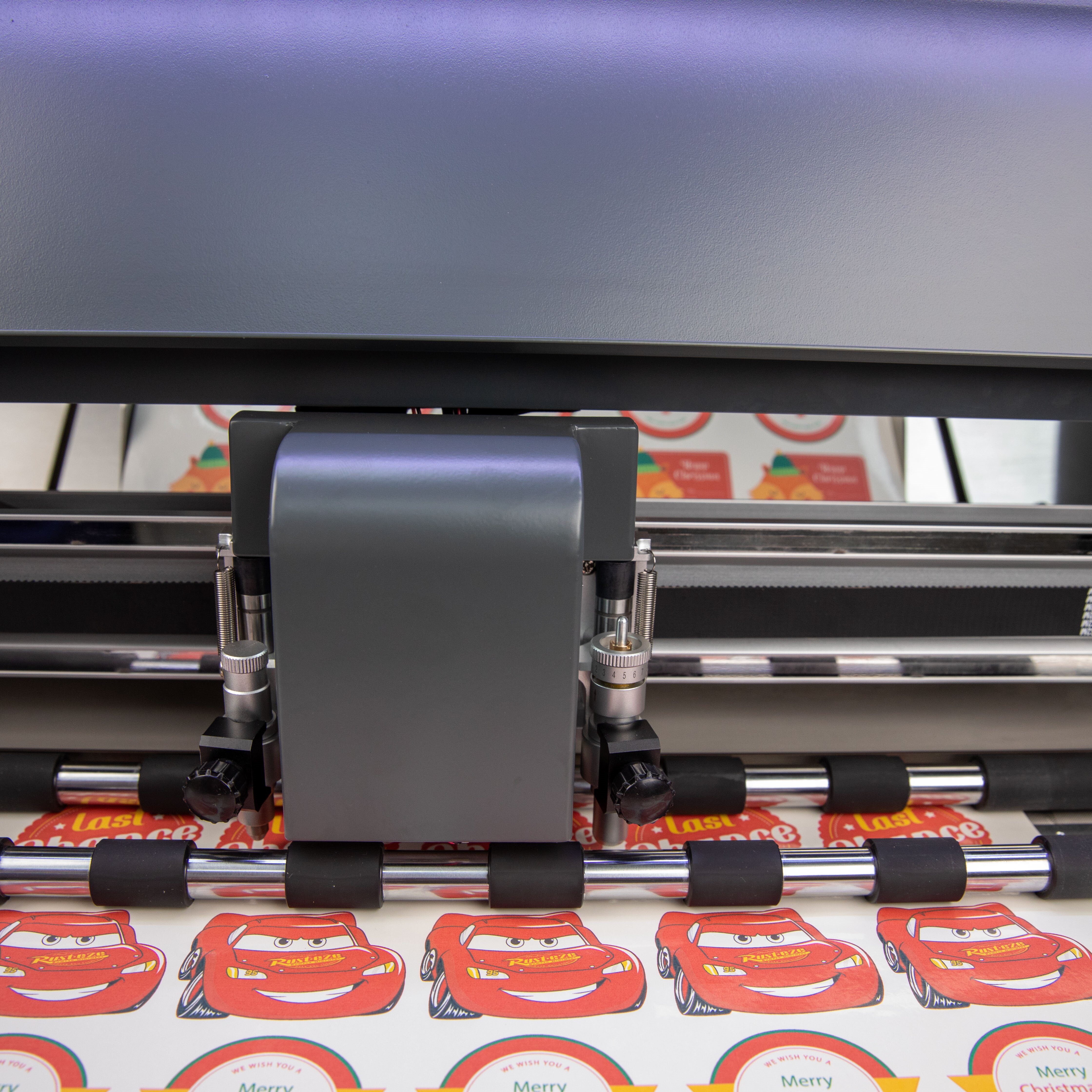

Blade | Dual Blades(Cutting&Creasing) | Single Blade |
Working Mode | Auto sheet feeding | |
Driver | Servo motor | |
Cutting Precision | ≤0.01mm | |
Repeatable Precision | ≤0.082mm | |
Interface | USB/U-Disc Port/WIFI/Ethernet Port | |
Compatible Software | Signmaster,AutoCAD,Coreldraw etc | |
Panel | 4.3" Touch Screen | |
Machine Size | 768*455*335.6mm | |
Voltage | DC220V±10%，50HZ | |
Packing Size | 91*58.5*46cm | 91*58.5*46cm |
Gross Weight | 58kg | 58kg |
PACKING INFO
Gross weight：58kg
Packing size：91*58.5*46cm
SPECIFICATION
Model | A3MAX4-WDD | A3MAX4-WD |
Max.Cutting Speed | 1600mm/s | |
Max.Feeding Width | 370mm | 370mm |
Max. Cutting Width | 350mm | 350mm |
Cutting Pressure | 2000g | |
Feeding Tray Capacity | 100 sheets | |
Blade | Dual Blades(Cutting&Creasing) | Single Blade |
Working Mode | Auto sheet feeding | |
Driver | Servo motor | |
Cutting Precision | ≤0.01mm | |
Repeatable Precision | ≤0.082mm | |
Interface | USB/U-Disc Port/WIFI/Ethernet Port | |
Compatible Software | Signmaster,AutoCAD,Coreldraw etc | |
Panel | 4.3" Touch Screen | |
Machine Size | 768*455*335.6mm | |
Voltage | DC220V±10%，50HZ | |
Packing Size | 91*58.5*46cm | 91*58.5*46cm |
Gross Weight | 58kg | 58kg |
PACKING INFO
Gross weight：58kg
Packing size：91*58.5*46cm
