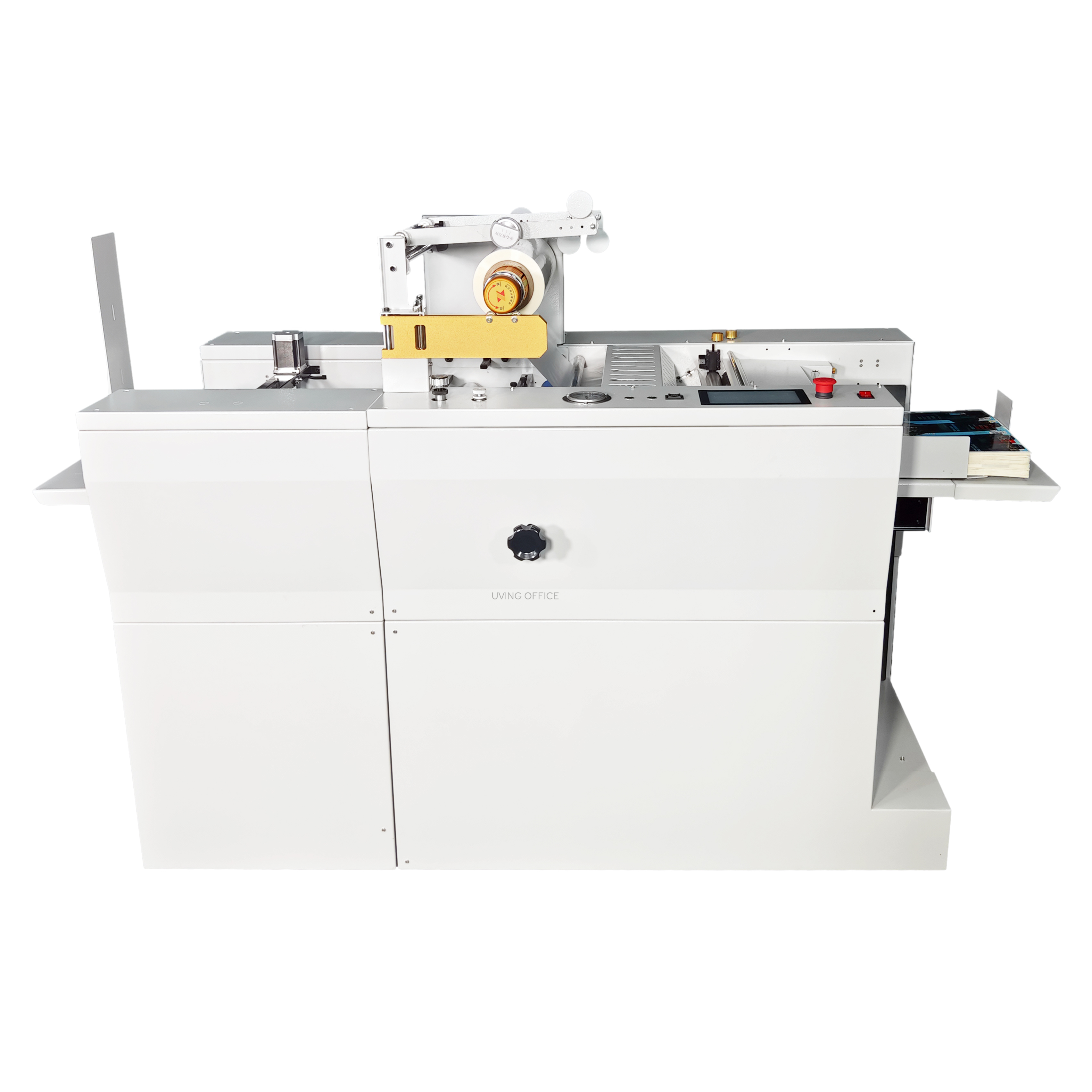

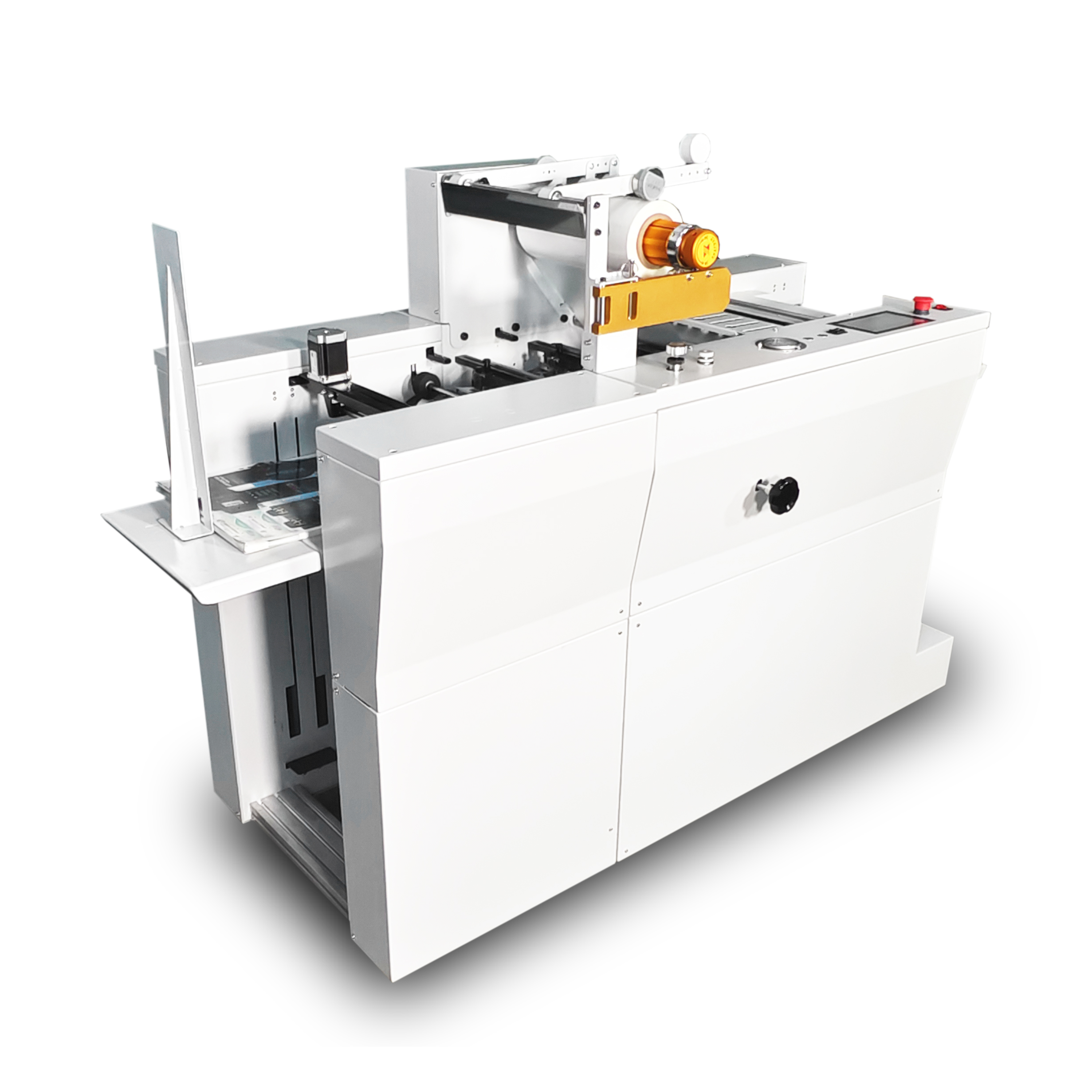

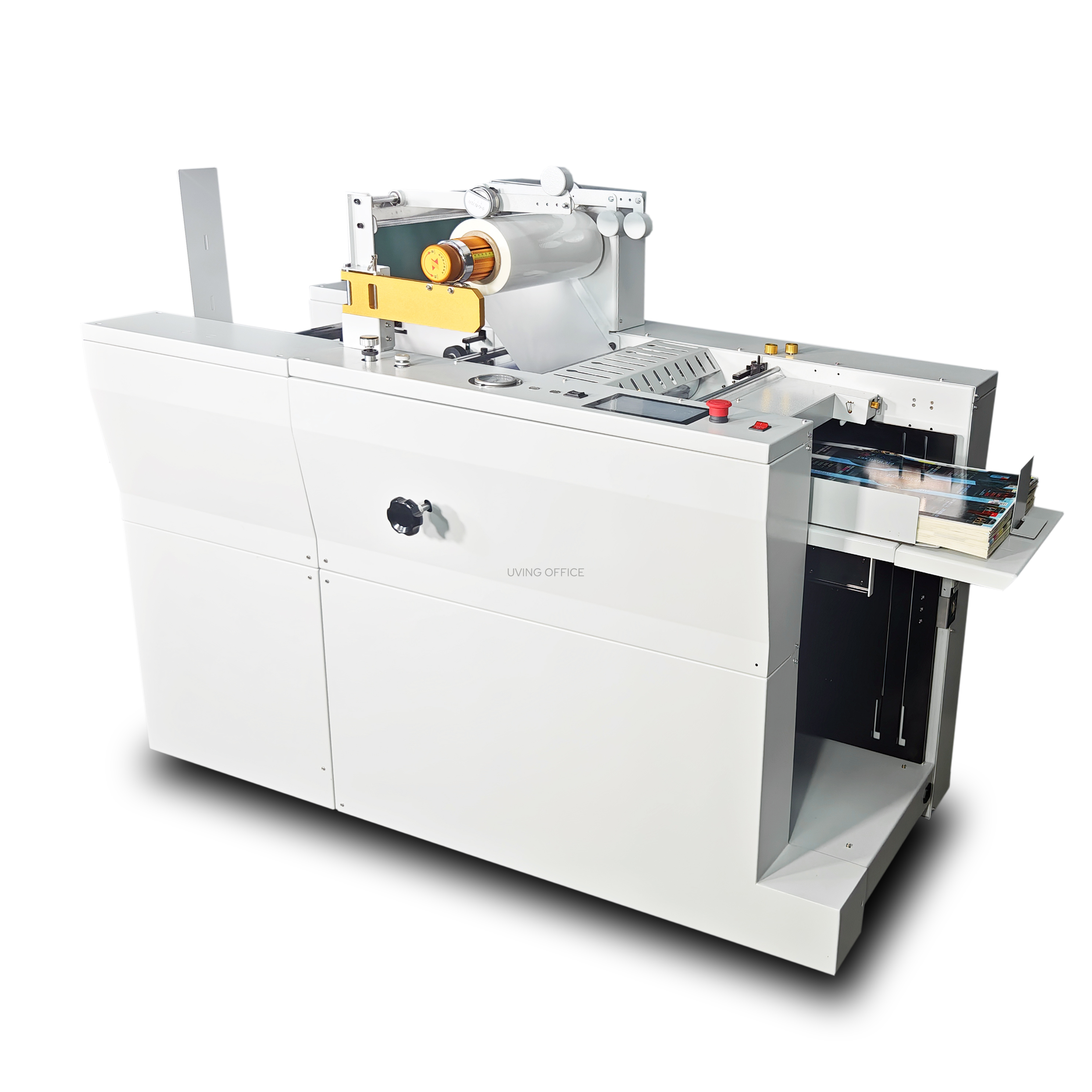

500T Automatic Hydraulic Laminating Machine

SPECIFICATION

• Max. laminating Size：340*560mm

• Min. laminating Size：130*210mm


• Laminating thickness：157-400gsm

• Laminating Temperature：0~160℃

• Laminating Speed：0~6m/min


• Feeding mode：Air suction automatic

• Heating mode：Steel roller

• Heating time：5-10min

• Edge trimming function：support

• Edge perforating function：support

• Anti-curl function：support

• Disconnect after laminating：support

• Display：7" touch screen

• Winder：Optiponal

• Machine dimension：200*75*130cm

• Voltage/Power：220V(110V)±10%，50HZ(60HZ),1500W

• Machine weight：380kg

PACKING INFO

• Gross weight：420kg

• Packing size：185*90*145cm
