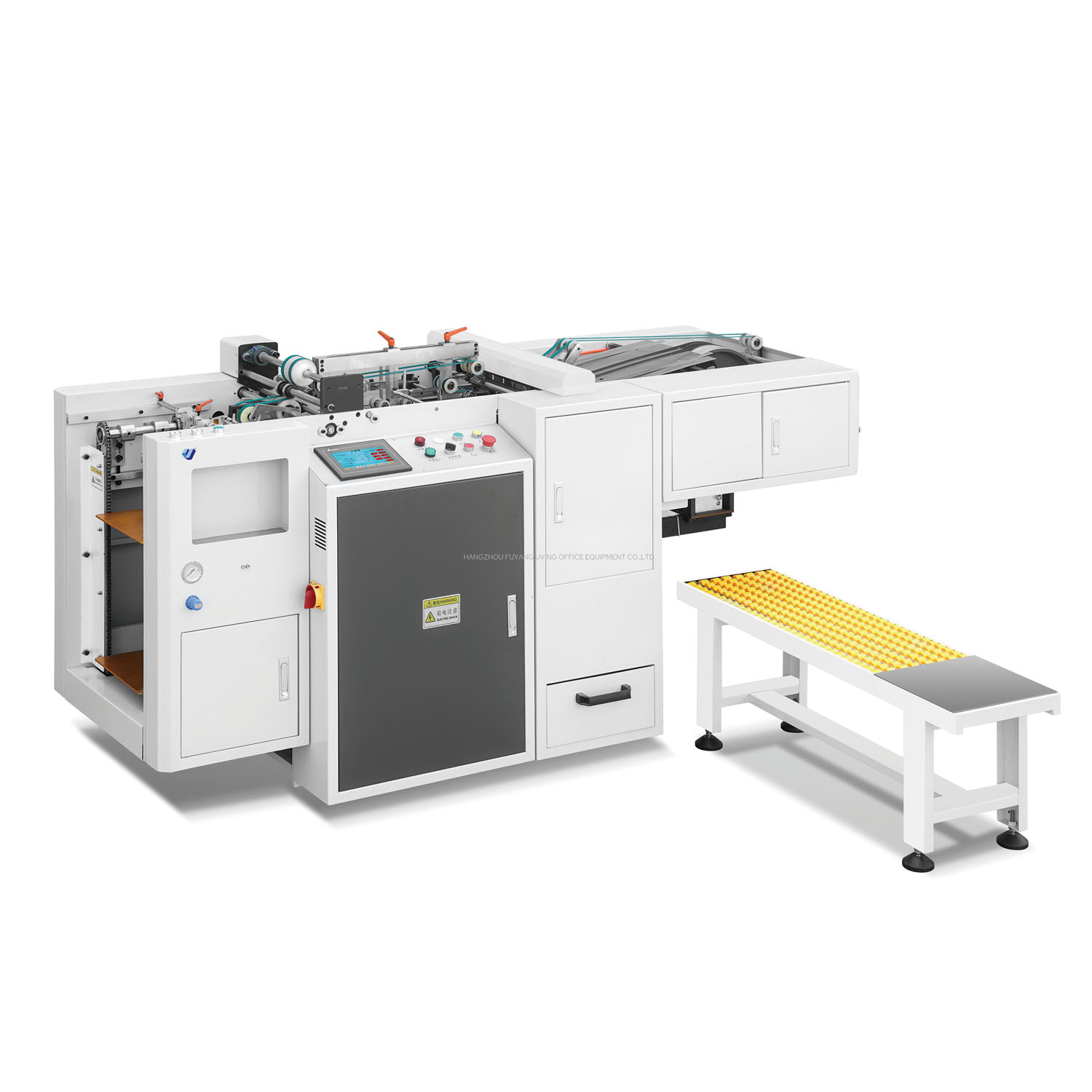

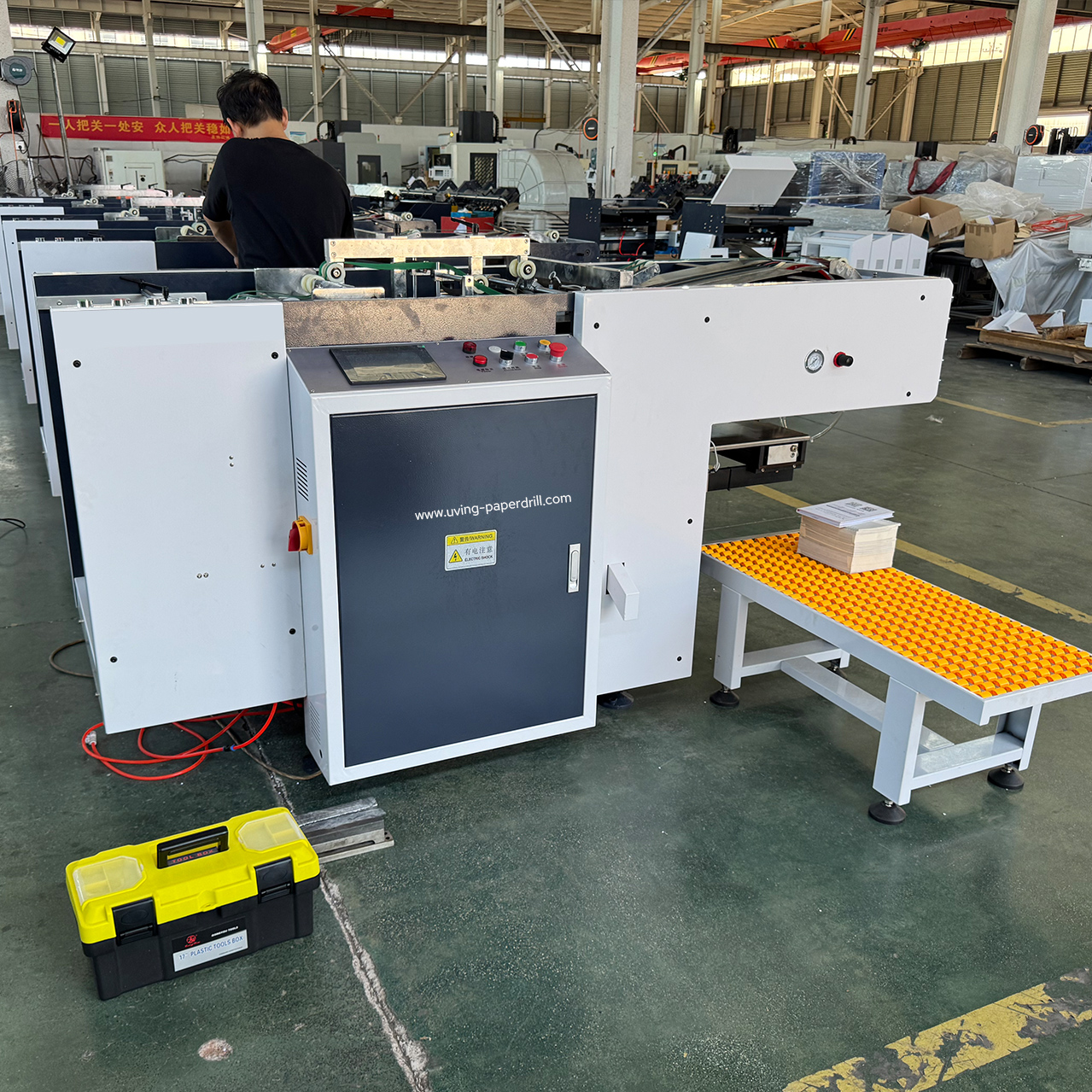

420C High Speed Automatic Notebook Punching Machine Calendar Punching Machine

The machine features step-driven feeding with adjustable thickness settings. It picks up the paper from the edge to avoid surface scratches, ensuring product quality. The paper is then conveyed into the punching die, aligned on three sides simultaneously, and punched. After punching, the paper is automatically collected in order. Margin adjustments are supported, and different hole shapes can be achieved by changing the mold.
Model:
Availability:
Quantity:
  • U-420C

  • UVING

  • 8472902100

SPECIFICATION

Model
U-460CU-460D(High-Speed)
Max.Punching Thickness/Time
2mm
3mm
Max.Feeding Size
420*420mm
Min.Feeding Size
70*100mm
Max.Punching Speed
7200time/h
9000time/h
Max.Loading Height
350mm
Paper Weight
50-300gsm
Air Compressor
1.5KW(Customer owned)
Machine Dimension
220*100*130cm
Voltage
380V/50Hz
Power
3000W
N.W./G.W.
920kg/980kg
Packing size(wooden case)
232*110*136cm

PACKING INFO

  • Gross weight:980kg

  • Packing size:232*110*136cm
